Lubeworks
Lubeworks J100TDGD pneumatic oil pump kit
- SKU
- 100827
- Tax
- included
- Shipping
- calculated at checkout, view policy
Product Description
Please note this is not a stocked item, if you wish to order please contact us first on 01704 896620 or via social media.

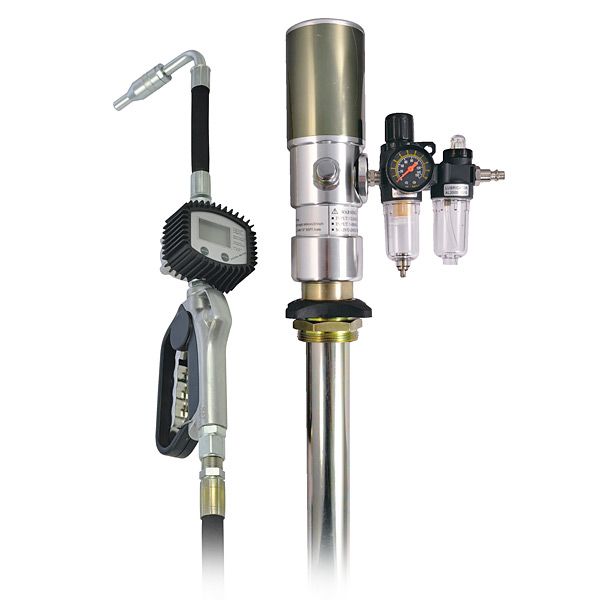

The J100TDGD is designed to pump and dispense oils up to 120 SAE from a 205ltr drum. The J100TDGD includes J100 drum pump, 2" bung adaptor, air regulator / lubricator, 3m (10ft) reinforced oil delivery hose and digital oil dispensing gun.
Kit includes
- J100 oil pump
- J18163536 digital control gun
- 2" bung adaptor
- Air regulator / lubricator
- 3m (10ft) reinforced oil delivery hose
J100 pump features
- Precision machined to ensure stability and long life
- Easy to operate and maintain
- Suitable for use with oils up to 120 SAE
- Supplied with 2" adjustable bung adaptor
- Suitable for use with engine oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid
- Low noise level - quiet efficient and reliable
- Mounting brackets and accessories available for this product
JAFC2000 regulator/lubricator features
- Features locking control knob for pre-setting air pressure
- Large easy-to-read pressure gauge
- Lubricator includes oil/air mix control
- Supplied with wall mounting bracket
J18163536 oil gun features
- Low battery indicator
- Accuracy: +/- 0.5 %
- Spout: Supplied with both rigid, and flexible nozzles.
- Power source: 1*3V CR2 Battery
- Rubber protection cover
J100 pump specifications
| Working air pressure | 5 to 10bar (70 to 150psi) |
| Maximum fluid pressure | 8 bar (115psi) |
| Air Consumption | @ 8bar - 100l/min |
| Output capacity ltr./min. | 18l/min |
| Suction tube diameter mm | 42mm |
| Air inlet connection | 1/4" quick plug |
| Oil delivery connection | 1/2" male |
| Maximum viscosity | 120 SAE |
| Test media, SAE30 oil @ 20°C through 2mtr hose length free outlet | |
JAFC2000 regulator/lubricator specifications
| Adjustable pressure range | 0.5 / 8.5bar |
| Max working pressure | 15 Bar |
| Inlet/outlet | 1/8" - 1/2" |
| Temperature range | 5-60°C |
| Suggested lubricant | ISO VG32 or same grade oil |
| Material (body) cup | Die cast aluminium PE |
| Capacity of oil cup | 25cc |
| Capacity of filter cup | 15cc |
J18163536 oil gun specifications
| Inlet connection |
1/2" female |
| Fluid range | 1 - 35 l/min; 0.3 - 9.2 gpm |
| Temperature | Max 60°C |
| Pressure range | 0.5 - 50 bar / 7 - 750 psi |
| Viscosity | 8 - 5000 mPas |
| Weight | 1.4kg / 3lb |
Please contact for all Technical Data and Safety information documents
